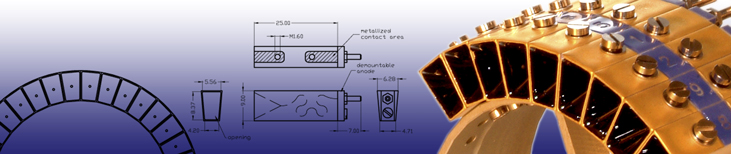

Characteristics of CEMs in Arrays











  Standard CEMs
  Typical gain at 2.3 kV applied voltage
1 x 10e8
  Typical wall resistance / channel Mohm 200
  Pulse height resolution at 2.6 kV and 3.000 cps % < 40
  Dark count rate above a threshold of - 5 mV / channel cps < 0.02
  Maximum count rate / channel cps 5 Mio

  Extended Dynamic Range type CEMs
  Typical gain at 2.8 kV applied voltage   1 x 10e8
  Typical wall resistance / channel MOhm 60
  Pulse height resolution at 2.8 kV and 3.000 cps % <80
  Dark count rate above a threshold of - 5 mV / channel cps
< 0.02
  Maximum count rate / channel
cps
15 Mio




In addition to the standard CEM models, we also offer flat rectangular CEMs which can be stacked together to form arrays and which allow simultaneous measurements and read out of several sensors. The metalized contact areas are usually deposited on the narrow under and upper side of the CEMs. The outputs and therefore the anodes for CEMs smaller than 4 mm are positioned off-center. This increases the distance between adjacent anodes and therefore reduces possible crosstalk between the signal lines.




Selection Guide CEM arrays

CEM array model

KBLA210-5 with 5 channels of 2 x 10 mm opening


KBLA210-5
KBLA510-5 with 5 channels of 5 x 10 mm opening

KBLA510-5
KBLA1505-5 with 5 channels of 5 x 10 mm opening

KBLA1505-5
KBLA1010-5 with 5 channels of 10 x 10 mm opening

KBLA1010-5

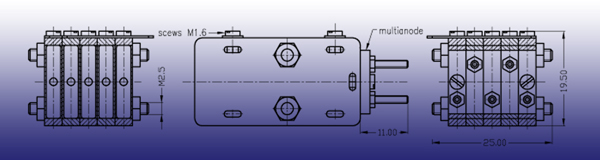

KBLA1503-5 with 5 channels of 15 x 3 mm opening

KBLA1503-5
































































Replacement of a CEM array for an OMICRON EA125 Energy Analyzer



This example shows the replacement of old glass Channeltrons™ for an OMICRON EA125 Energy Analyzer and the extension from 5 to 7 CEMs model KBLA125EA-7







Fig. 12 Original CEMs in EA125

Fig. 13 Original slits for 5 CEMs

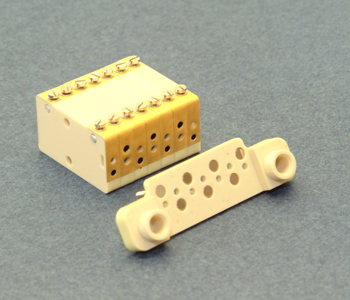

Fig. 14 Replacement CEM array

Fig 15 New slits for 7 CEMs









































Fig. 1 CEM array model KBLA210-5

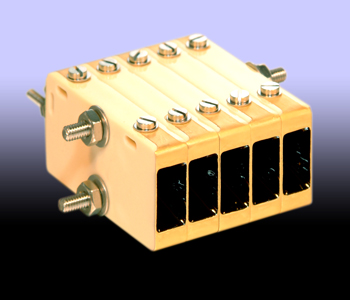

Fig. 2 CEM array model KBLA510-5

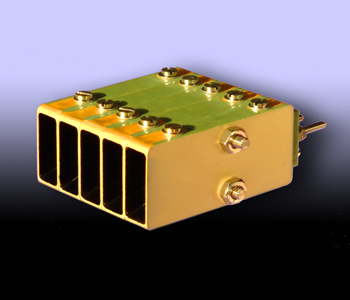

Fig. 3 CEM array model KBLA1505-5

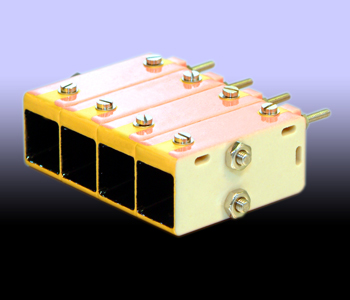

Fig. 4 CEM array model KBLA1010-4


Fig. 5 KBLA_IPP_9 with 9 channels and 3 different openings

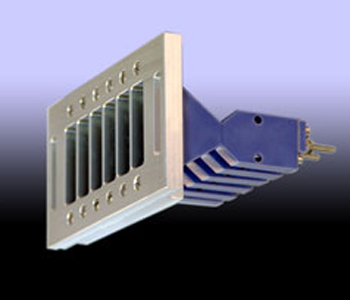

Fig. 6 KBLA1707_6 with front plate



Fig. 7 Compact Neutral Particle Analyser CNPA-03
Ioffe Institute, St. Petersburg


Fig. 16 Replacement CEMs with multi anode

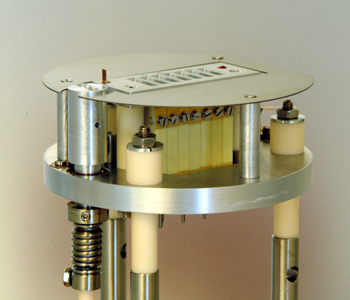

Fig. 17 Mounted array with 7 CEMs



Fig. 22 ESCALAB220 iXL CEM models


Fig. 23 CEM Model KBL220ESCALAB






























































































Replacement of a CEM array for VG CLAM 4 Electron Spectrometer

  As a special service we offer the replacement of old glass made CEMs by CEMs Series KBL for electron spectrometer. This example shows the replacement for a VG CLAM4.






Fig. 8 Original CEMs made entirely of glass

Fig. 9 CEM array before replacement







Fig. 10 Replacement CEMs type KBL1707

Fig. 11 New CEM array























































































































































A CEM array for a VG Thermo ESCALAB220 iXL X-ray Spectrometer




This sample shows the replacement of old glass CEMs for a VG Thermo ESCALAB220 iXL X-ray spectrometer by our CEM model KBL1507







Fig. 18 Original CEMs

Fig.19 CEM array before replacement







Fig. 20 Replacement CEMs Model KBL1507

Fig. 21 New CEM array
